Lamella Settler Modules
Lamella settler modules permit an increase in the settling surface in decantation/sedimentation units, constituting the simplest and most immediate form of upgrading of existing installations as well as the best solution for the plant designer facing layout problems or who wishes to reduce the costs of the civil engineering works.
Refill-Tech Solutions produces four different models of lamella settler pack which are employed in all types of decantation plant, clarifiers or primary, secondary or tertiary sedimentation units. The lamella modules with 45° channel inclination are designed to separate out oil and hydrocarbons present in discharge water by accelerating the natural process of stratification by gravity.
These are extensively employed in the most demanding applications such as flotation units or clariflocculators and can be supplied with frames for containment and/or lifting, executed in AISI 304, 316L or galvanised steel, support shelves or profiled wall-anchoring supports, overflow channels with Thomson weirs.
ADVANTAGES
• Lightweight, modular and easy to manhandle
• High mechanical strength and chemical resistance
• Hydrophilic
LSM 40 (Lamella Settler Module 40 mm) is a lamella settler pack with parallel channels obtained from the assembly of PVC sheets which have been appropriately corrugated by means of thermoforming from a roll of raw material.
Technical Characteristics Material of Construction PVC Projected Surface at 45° inapplicable Projected Surface at 60° 19 m2/m3 Vertical Height at 60° 600/1200 mm Vertical Height at 45° n.a. Spacing at 60° 40 mm Hydraulic Radius 13 mm
LSM 50 (Lamella Settler Module 50 mm) is a lamella settler pack with parallel channels obtained from the assembly of PS sheets which have been appropriately corrugated by means of thermoforming from a rigid sheet of raw material.
Technical Characteristics Material of Construction PS Projected Surface at 45° 19,3 m2/m3 Projected Surface at 60° 13,8 m2/m3 Vertical Height at 60° 530/1320 mm Vertical Height at 45° 445 ÷ 1110 mm Spacing at 60° 50 mm Hydraulic Radius 15 mm
LSM 60 (Lamella Settler Module 60 mm) is a lamella settler pack with parallel channels obtained from the assembly of PVC/PS sheets which have been appropriately corrugated by means of thermoforming.
Technical Characteristics Material of Construction PVC/PS Projected Surface at 45° inapplicable Projected Surface at 60° 13,2 m2/m3 Vertical Height at 60° 500/1000 mm Vertical Height at 45° n. a. Spacing at 60° 60 mm Hydraulic Radius 20 mm
LSM 70 (Lamella Settler Module 60 mm) is a lamella pack obtained by the assembly of PS thermoformed plates.
Caratteristiche tecniche Materiale PVC/PS Projected Surface at 45° 17,2 m2/m3 Projected Surface at 60° 13,2 m2/m3 Vertical Height at 60° 540 /1580 mm Vertical Height at 45° 455 /1305 mm Spacing at 60° 70 mm Hydraulic Radius 1,75 mm

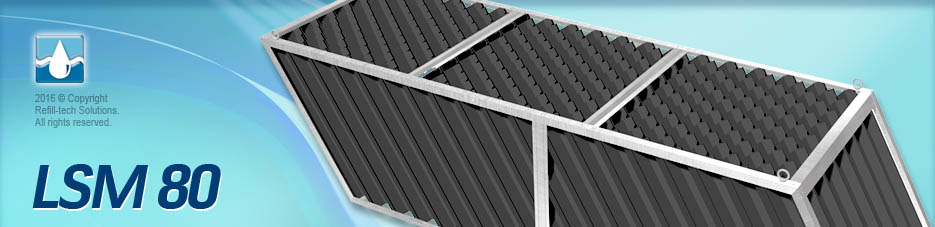

LSM 80 (Lamella Settler Module 80 mm) is a lamella settler pack with parallel channels obtained from the assembly of PS sheets which have been appropriately corrugated by means of thermoforming from a rigid sheet of raw material.
Technical Characteristics Material of Construction PS Projected Surface at 45° 10,5 m2/m3 Projected Surface at 60° 9,9 m2/m3 Vertical Height at 60° 530/1060 mm Vertical Height at 45° 445 ÷ 866 mm Spacing at 60° 77 mm Hydraulic Radius 24 mm
LSM 80 PLUS (Lamella Settler Module 85 mm) is a lamella settler pack with parallel channels obtained from the assembly of PVC/PS sheets which have been appropriately corrugated by means of thermoforming.
Technical Characteristics Material of Construction PVC/PS Projected Surface at 45° inapplicable Projected Surface at 60° 12,5 m2/m3 Vertical Height at 60° 500/1000 mm Vertical Height at 45° n. a. Spacing at 60° 85 mm Hydraulic Radius 25 mm
LSM 80 PLUS (Lamella Settler Module 85 mm) is a lamella settler pack with parallel channels obtained from the assembly of PVC/PS sheets which have been appropriately corrugated by means of thermoforming.Technical Characteristics Material of Construction PVC/PS Projected Surface at 45° inapplicable Projected Surface at 60° 12,5 m2/m3 Vertical Height at 60° 500/1000 mm Vertical Height at 45° n. a. Spacing at 60° 85 mm Hydraulic Radius 25 mm
LSM SST (Lamella Module in Stainless Steel) is a lamella settler pack obtained from assembly of parallel flat sheets made of stainless steel fixed on a suitable fraime to guarentee the desired inclination
Technical Characteristics Material of Construction Stainless Steel Projected Surface at 45° 16,5 m2/m3 Projected Surface at 60° 10 m2/m3 Vertical Height at 60° 1000/1300 mm Vertical Height at 45° 1000 mm Spacing at 60° 35 mm Spacing at 45° 42 mm
