Drift and droplet eliminators permit the separation of fluids in a gaseous stream, the most common case of this being the separation of water droplets present in an airstream.
Refill-Tech Solutions’ panel-type drift eliminators, fabricated from PVC which meets the CTI136 and ASTM E-84 reference guidelines on flame resistance have been designed to offer high separation efficiency, passing very challenging tests, both for separation efficiency and in terms of high mechanical strength.They are characterised by significant ease of handling, which facilitates their employment in the plant in the installation phase and during subsequent maintenance works.
On request all these products can be supplied with frames fabricated from various materials, both plastics and metals.
ADVANTAGES
Low pressure drops
Mechanical strength
Simplicity in positioning thanks to their modularity
Lightweight, which permits easy handling
Resistance to most chemicals and to biological aggressiona
BLADE (Drift Eliminator – C shape) is a thermoformed PVC panel-type droplet separator; the multi-directional profile allows it to be used without spacers.
| Material | PVC |
|---|---|
| Length | 1000–2500 mm |
| Width | 300–600 mm |
| Height | 190 mm |
| Maximum temperature | 60°C |
| Maximum air velocity | 3.5 m/s |
CellularMax (Drift Eliminator – C shape – 140 mm) thermoformed PVC panel separator; designed for high drift removal efficiency.
| Material | PVC |
|---|---|
| Length | 1200/1500/1800/2100/2400 mm |
| Width | 300/600 mm |
| Height | 140 mm |
| Maximum temperature | 60°C |
| Drift | 0.0005% |

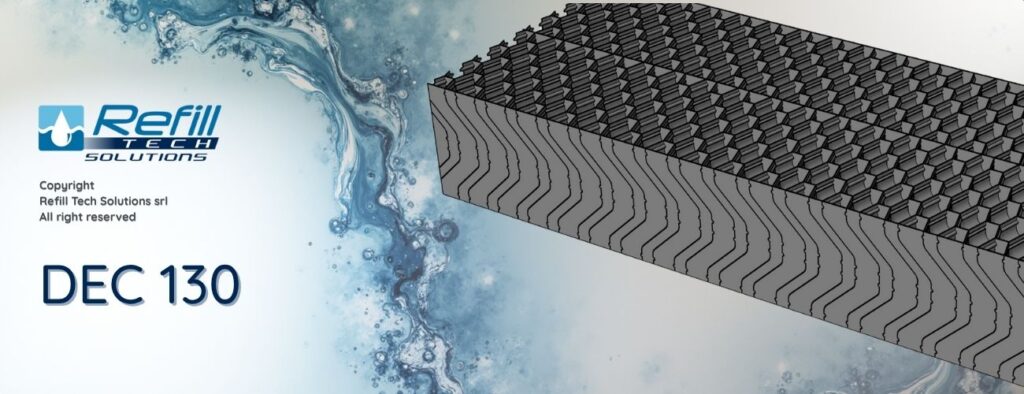

DEC 130 (Drift Eliminator – C shape – 130 mm) is a thermoformed PVC panel separator; the profiled design does not require spacers.
| Material | PVC |
|---|---|
| Length | 1200/1800/2400 mm |
| Width | from 300 to 1000 mm |
| Height | 130/200/260 mm |
| Maximum temperature | 60°C |
| Maximum air speed | 3 m/s |
DEC 140 (Drift Eliminator – C shape – 140 mm) thermoformed PVC panel with a curved profile; it does not require spacers.
| Material | PVC |
|---|---|
| Length | 1200/1800/2400 mm |
| Width | from 300 to 1000 mm |
| Height | 140 mm |
| Maximum temperature | 60°C |
| Maximum air speed | 4 m/s |

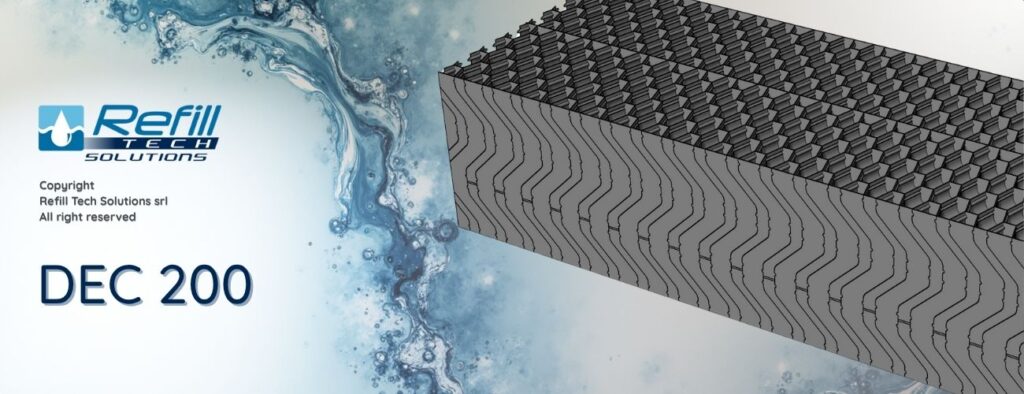

DEC 200 (Drift Eliminator – C shape – 200 mm) thermoformed PVC panel separator with a double change of direction profile.
| Material | PVC |
|---|---|
| Length | 1200/1800/2400 mm |
| Width | 300/600 mm |
| Height | 200 mm |
| Maximum temperature | 60°C |
| Maximum air speed | 4 m/s |

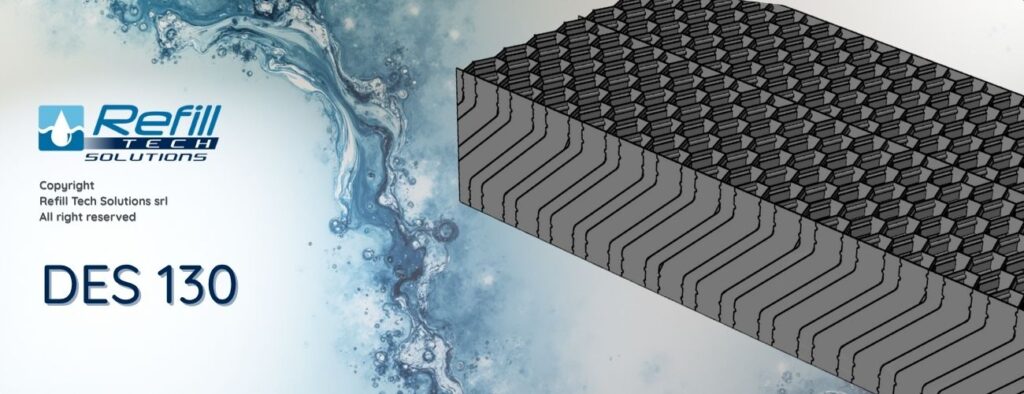

DES 130 (Drift Eliminator – S shape – 130 mm) is a thermoformed PVC separator panel; the geometry allows separation without spacers.
| Material | PVC |
|---|---|
| Length | 1200/1800/2400 mm |
| Width | 300–1000 mm |
| Height | 130/200/260 mm |
| Maximum temperature | 60°C |
| Maximum air velocity | 3 m/s |

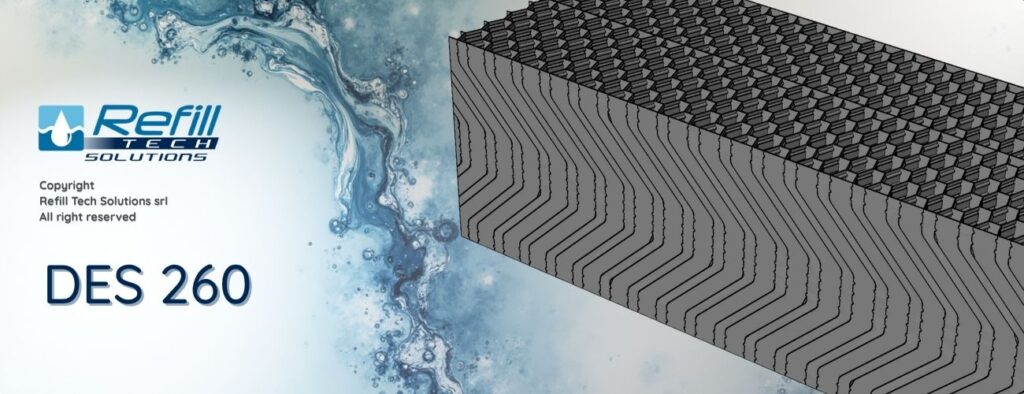

DES 260 (Drift Eliminator – S shape – 260 mm) thermoformed PVC separator panel, recommended for low pressure drop.
| Material | PVC |
|---|---|
| Length | 1200/1800/2400 mm |
| Width | 600 mm |
| Height | 260 mm |
| Maximum temperature | 60°C |
| Maximum air speed | 3 m/s |
